Substations

SEM 1 scanning equipment for meters

SEM 1 contains the OSH 256 passive optical scanning head to detect the status of optical pulse LEDs of electronic energy meters. It is suitable for a wavelength range of 550 nm to 1000 nm.
An adapter cable for direct connection to the external interface (EXIF) connector on the rear of a CMC 356, CMC 256plus, CMC 430, CMC 353 or CMC 310 is included in delivery.

SEM 2 scanning equipment for meters

SEM 2 contains the photoelectric scanning head TK 326 which is suitable for scanning of rotor marks of Ferraris meters and for scanning of optical pulse outputs of electronic meters. It is suitable for a wavelength range of 450 nm to 950 nm.
An adapter cable for direct connection to the external interface (EXIF) connector on the rear of a CMC 356, CMC 256plus, CMC 430, CMC 353 or CMC 310 is included in delivery.

Standard Accessories for CMC 310 and CMC 353

Country-specific power cord 3 m (9,8 ft)
Ethernet patch cable 1.5 m (4.9 ft), RJ45
To connect CMC test sets with Ethernet connection to PC or network
Ethernet patch cable 3 m (9.8 ft), RJ45 (supplied for CMC 353 only)
To connect CMC test sets with Ethernet connection to PC or network
USB 2.0 connection cable 2 m (6.6 ft)
To connect CMC test sets with USB connection to PC

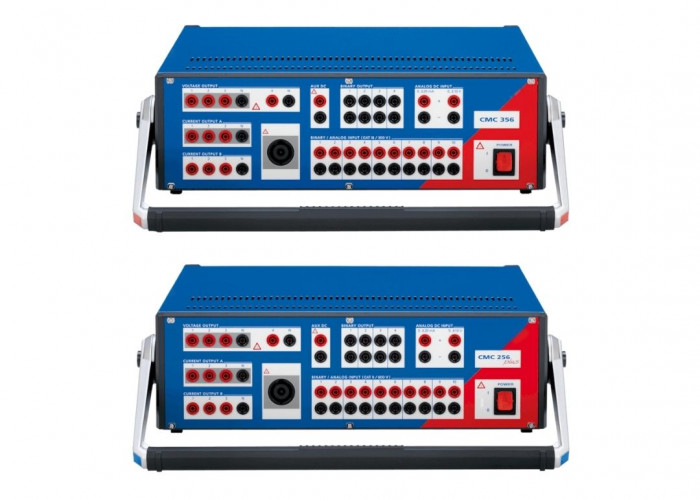

Standard Accessories for CMC 356 and CMC 256plus

Country-specific power cord 3 m (9,8 ft)
Ethernet patch cable 1.5 m (4.9 ft), RJ45
To connect CMC test sets with Ethernet connection to PC or network
Ethernet patch cable 3 m (9.8 ft), RJ45
To connect CMC test sets with Ethernet connection to PC or network
USB 2.0 connection cable 2 m (6.6 ft)
To connect CMC test sets with USB connection to PC
Jumper, flexible, 6 cm (2.4 in) long (4 x black) for paralleling current triple A and B

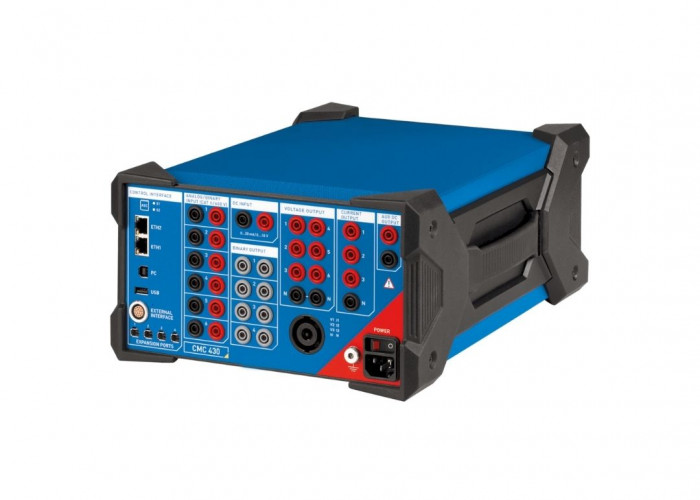

Standard Accessories for CMC 430

• Ethernet patch cable 1.5 m (4.9 ft), RJ45
• To connect CMC test sets with Ethernet connection to PC or network
• Ethernet patch cable 3 m (9.8 ft), RJ45
• To connect CMC test sets with Ethernet connection to PC or network
• USB 2.0 connection cable 2 m (6.6 ft)
• To connect CMC test sets with USB connection to PC
• For grounding the test set
• 2 m (6.6 ft) long, 600 V (6 x red, 6 x black)
• Flexible terminal adapters (12 x black)
• Flexible test lead adapters with retractable sleeves

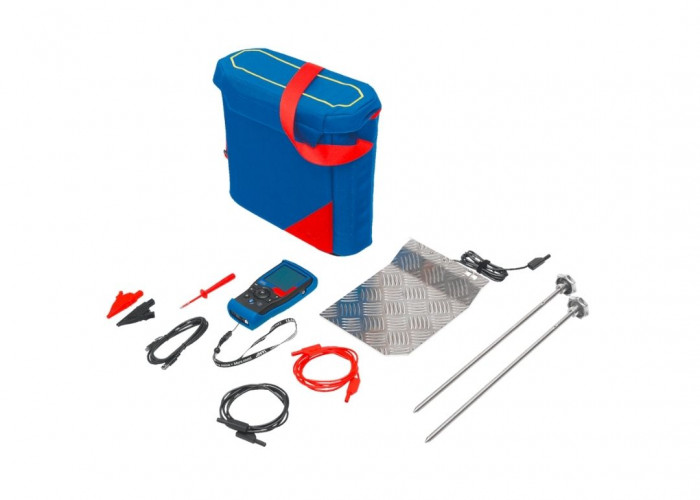

Step and touch voltage accessories

1 x HGT1 Handheld grounding tester and accessories
2 x Ground rods 45 cm / 1.5ft (IEEE 81/EN 50222)
1 x Foot Electrode with cable (20 cm x 20 cm, EN 50222)
1x Connection cables red and black 2 m (6.5 ft)
1x Crocodile clamps (red and black)
1x Test peak (red)
1 x Accessory bag with shoulder strap

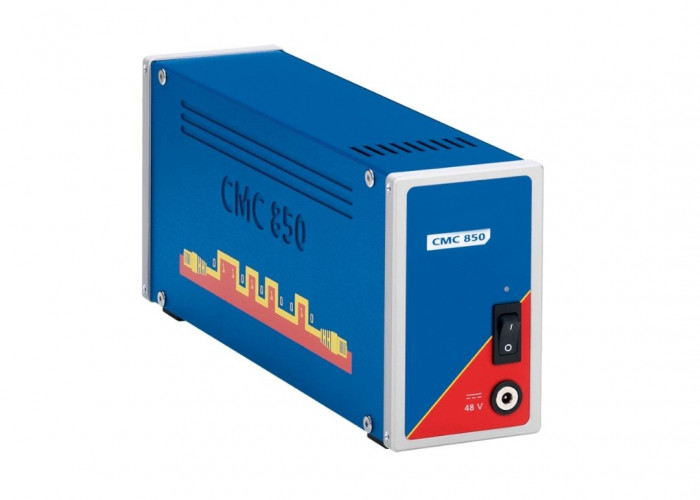

Standard Accessories for CMC 850

With every CMC 850 test set a standard accessory package comprising the following items is included. The individual items can also be ordered separately.
• 2 x Ethernet patch cable 1.5 m (4.9 ft), RJ45
To connect CMC test sets with Ethernet connection to PC or network
• 2x Ethernet patch cable 3 m (9.8 ft), RJ45
To connect CMC test sets with Ethernet connection to PC or network
• Soft bag for CMC 850

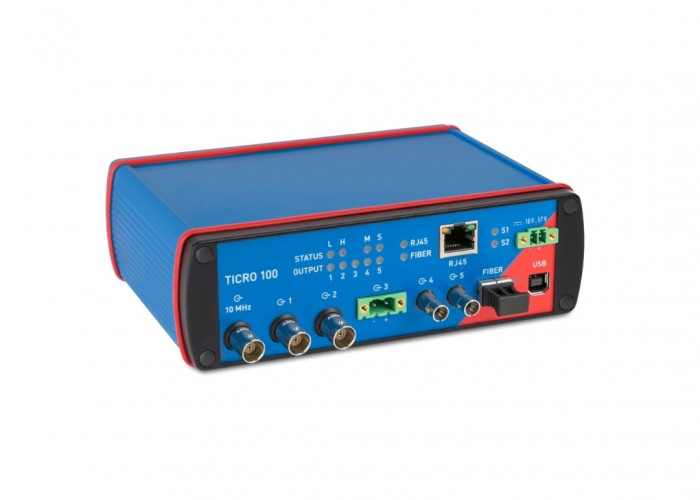

TICRO 100

Easy integration of non-PTP devices into IEEE 1588/PTP infrastructures
Freely assign different time codes to coaxial, optical and optocoupler outputs
High stability internal oscillator for guaranteed time accuracy in case of PTP signal loss or network failures
Freely configurable trigger times for distributed measurements
Secure web interface for platform independent control via fiber or copper Ethernet

Submit your product request directly and our staff will contact you to provide you with all relevant information.
