Water Supply / Sanitation

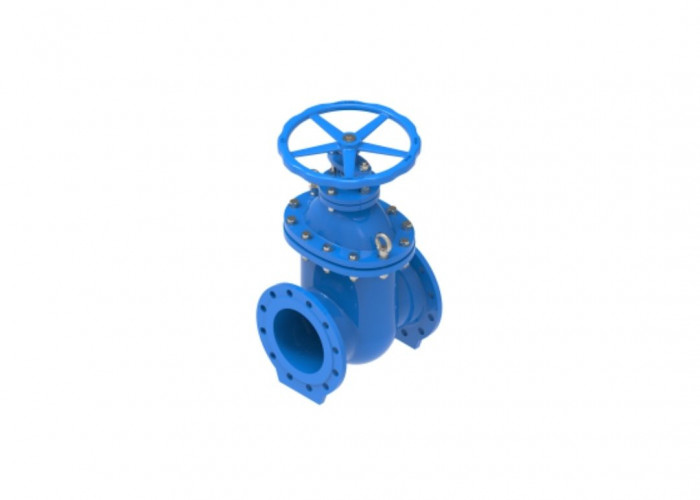

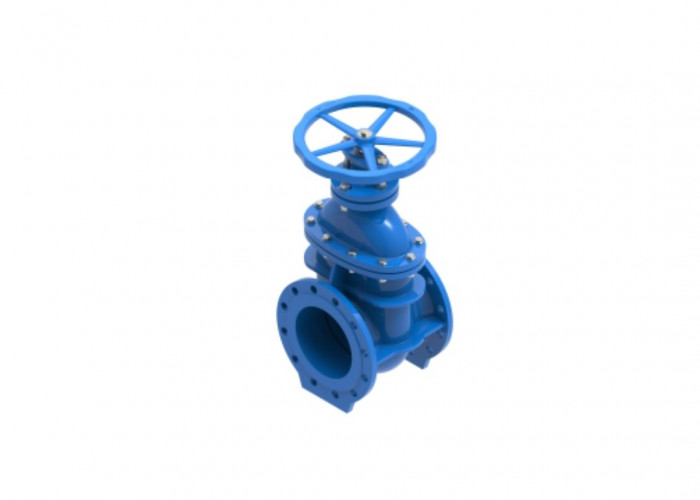

Gate Valve
Material:
• body/wedge/bonnet - EN-GJS-400-15
• spindle - X20Cr13
Max. working temperature: 60˚C
Face to face lenght: EN 558 serie 3
Installation flanges according to EN 1092-2 (other standards on request)
Operation: handwheel, electric actuator, extension spindle (other on request)
Test according to EN 12266
• body/wedge/bonnet - EN-GJS-400-15
• spindle - X20Cr13
Max. working temperature: 60˚C
Face to face lenght: EN 558 serie 3
Installation flanges according to EN 1092-2 (other standards on request)
Operation: handwheel, electric actuator, extension spindle (other on request)
Test according to EN 12266

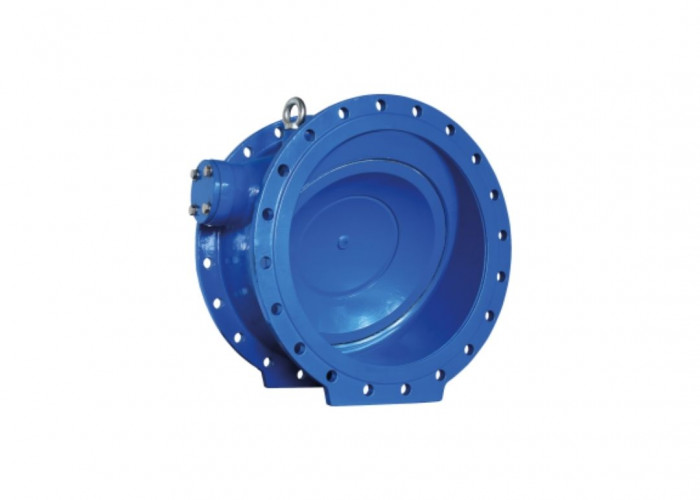

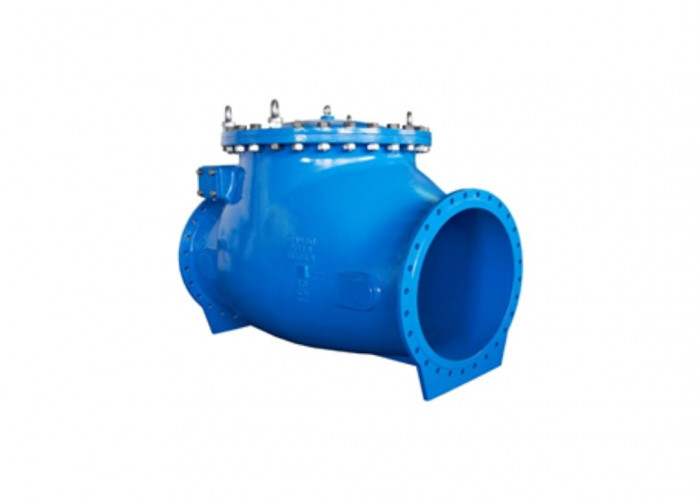

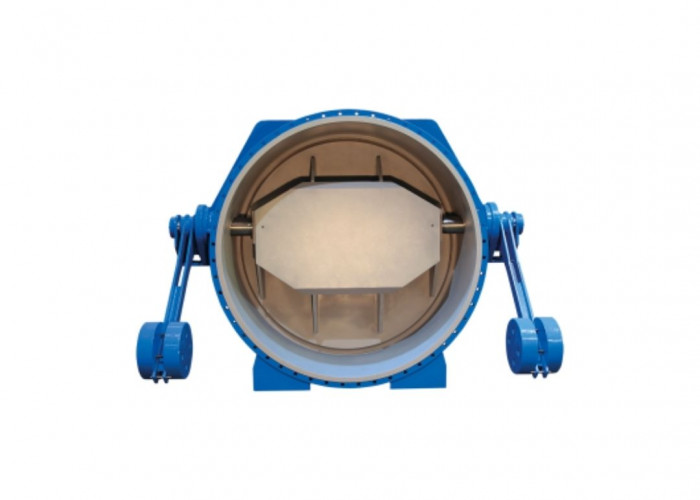

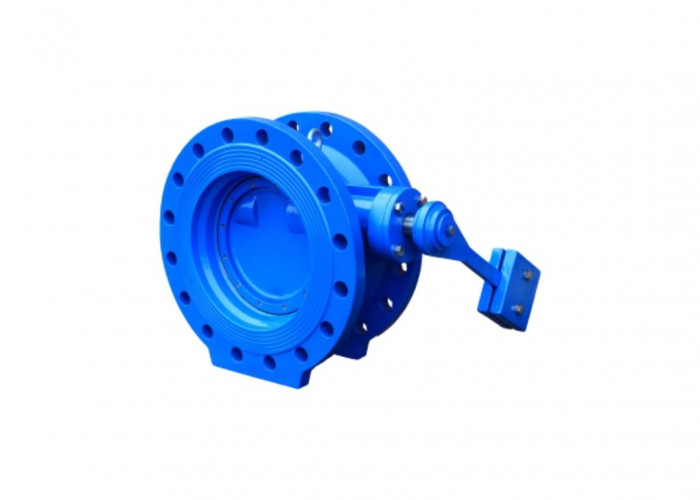

Check Valve
Material:
• body - ductile cast iron EN-GJS-400-15
Max. working temperature: 60°C (other on request)
Installation flanges according to EN 1092-2 or on request according to other standard

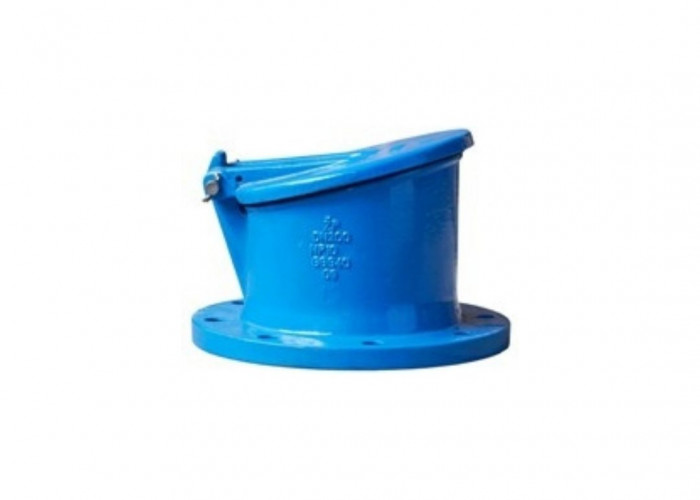

-Flap Check Valve - welded design
Material: body - steel S355J2G3
Max. working temperature: 60°C (higher on special request)
Installation flanges according to EN 1092-1 or on request according to other standards
• body - ductile cast iron EN-GJS-400-15
Max. working temperature: 60°C (other on request)
Installation flanges according to EN 1092-2 or on request according to other standard
-Flap Check Valve - welded design
Material: body - steel S355J2G3
Max. working temperature: 60°C (higher on special request)
Installation flanges according to EN 1092-1 or on request according to other standards

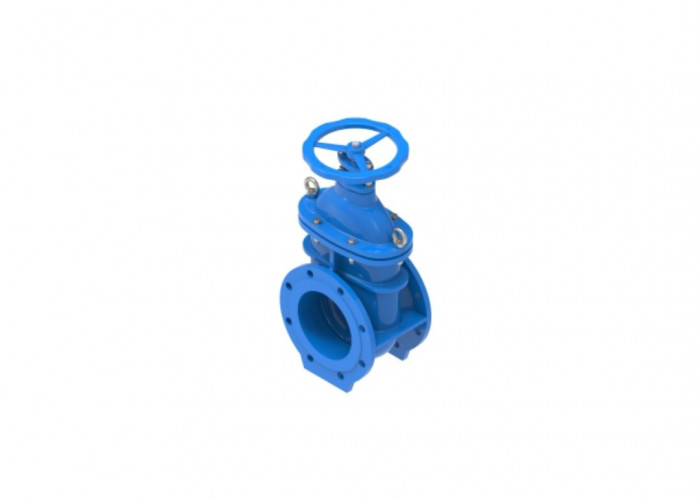

Oval Gate Valve with metal sealing
Material:
• body/wedge/bonnet/ - EN-GJS-400-15
• spindel - X20Cr13
Max. working temperature: 60˚C
Face to face lenght: EN 558 serie 15
Installation flanges according to EN 1092-2 (other standards on request)
Operation: hadwheel, electric actuator, extension spindle
Test according to EN 12266
• body/wedge/bonnet/ - EN-GJS-400-15
• spindel - X20Cr13
Max. working temperature: 60˚C
Face to face lenght: EN 558 serie 15
Installation flanges according to EN 1092-2 (other standards on request)
Operation: hadwheel, electric actuator, extension spindle
Test according to EN 12266
Submit your product request directly and our staff will contact you to provide you with all relevant information.
Why choose our products?
- High quality
- Resistant to external factors
- Competitive price
