• Tongue type • Saddle type • Diaphragm seals for paper industry • Other specific types on request

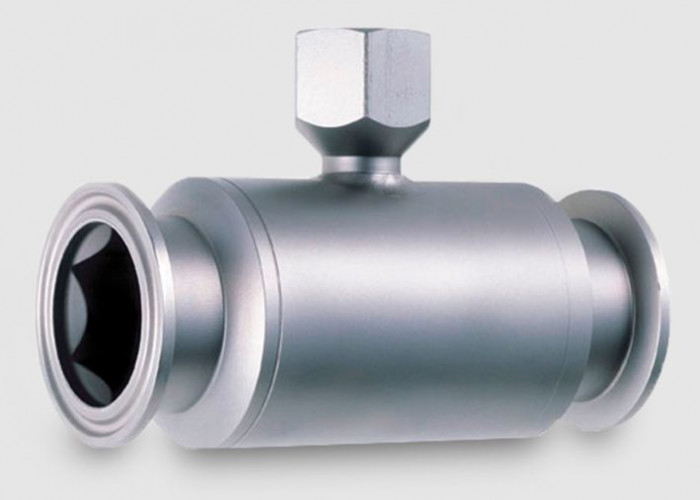

In-line seals
• Hygienic, flanged and threaded connections • Stainless steel • Ranges from 0...1 bar to 0...40 bar • No dead volume • ISO 2852, SMS 1146, DIN 32676, DIN 11851 ... • EN 1092-1, ASME B16.5, 1759-1

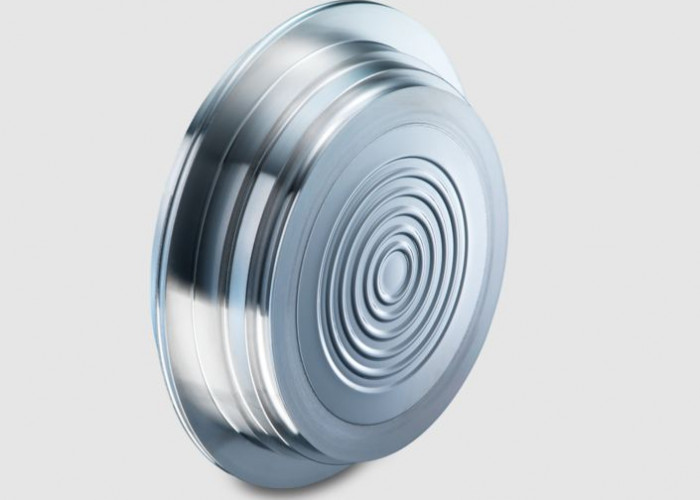

Hygienic diaphragm seals
• Hygienic process connections for Food and Pharma applications • Stainless steel or hastelloy • Ranges from 0...1 bar to 0...60 bar • ISO 2852, SMS 1146, DIN 32676, DIN 11851 ... • Suitable for CIP and SIP • FDA compatible filling fluids • 3A, EHEDG
Seals with flange connection
• Flanged process connection • Stainless steel, exotic materials and coatings • Ranges from 0...25 mbar to 0...420 bar • DN 10 to 100 / 1/2" to 4" • PN10 to 420 / Class 150...2500 • EN 1092-1, ASME B16.5, EN 1759-1
Seals with threaded connection
• Threaded process connection • Stainless steel, exotic materials and coatings • Ranges from 0...1 bar to 0...400 bar • Large selection of process connections • Flush or internal diaphragm • Flushing ring available
Differential pressure gauges with differential cell
• Differential pressure measurement • Wetted parts AISI 316L, Monel, Hastelloy • Dial size: 100 mm, 150 mm • Ranges from 0...25 mbar to 0...25 bar • Static pressure: max. 400 bar
Differential pressure gauges with bellow
• Differential pressure measurement • With or w/o contact • Dial size: 150 mm • Ranges from 0...0.1 to 0...25 bar • Static pressure: max. 100 bar

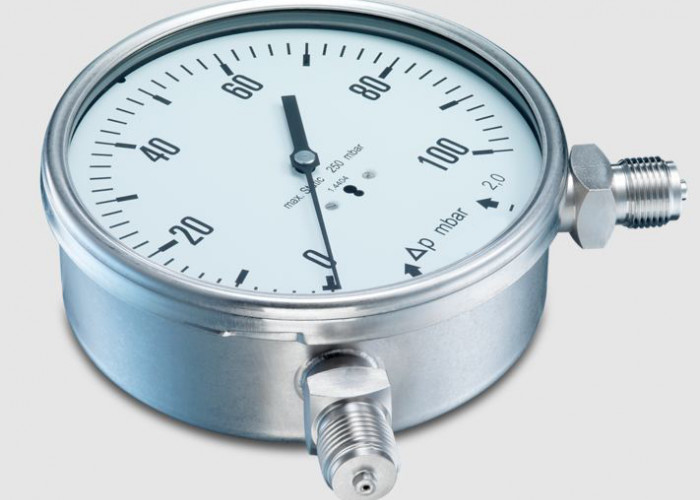

Differential pressure gauges with capsule
• Very low differential pressure • Wetted parts AISI 316L • Dial size: 150 mm • Ranges from 0...10 to 0...250 mbar • Static pressure: max. 250 mbar
Submit your product request directly and our staff will contact you to provide you with all relevant information.
